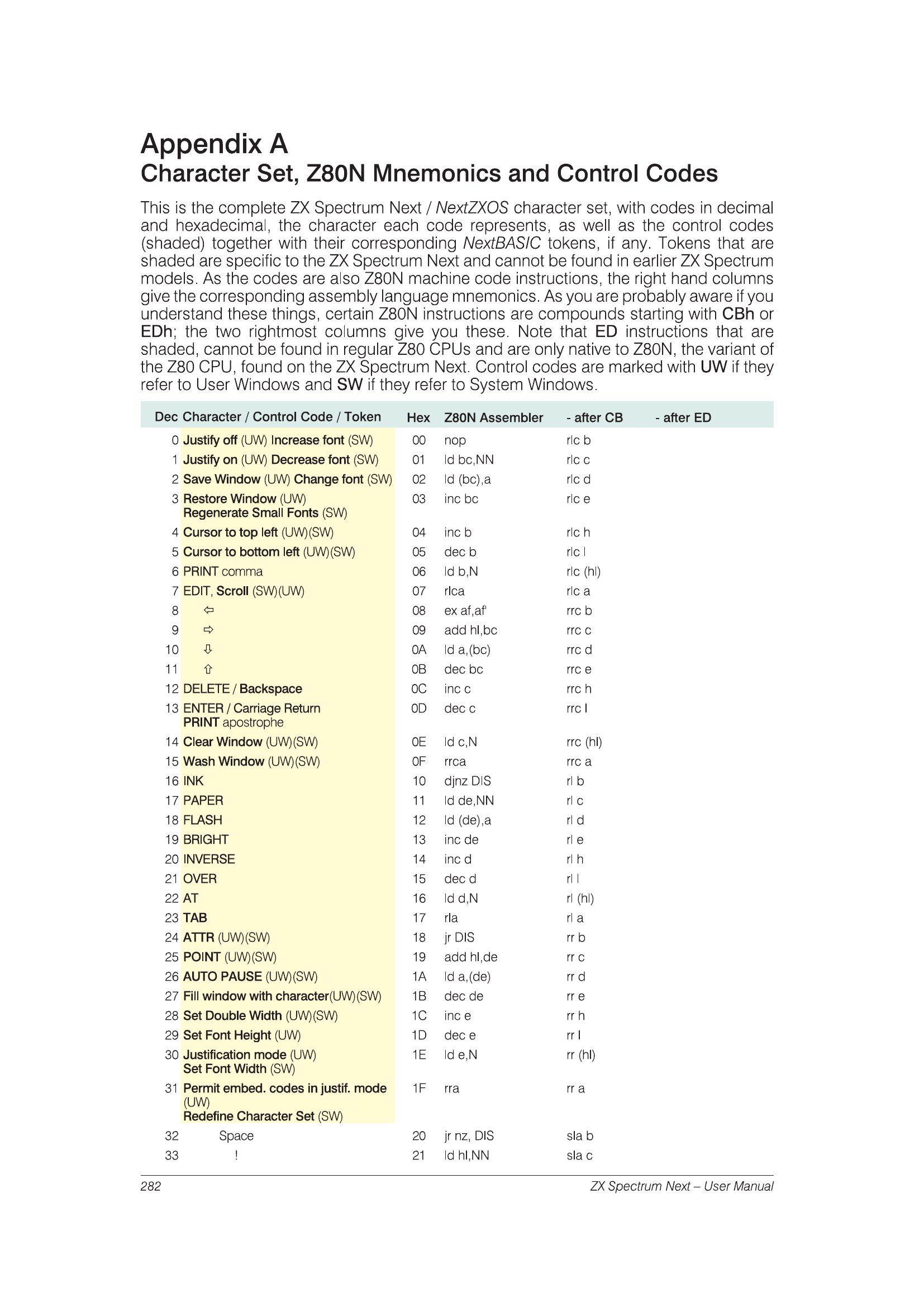

Appendix A – Character Set, Z80N Mnemonics and Control Codes | ZX Spectrum Next User Manual, 3rd Edition

Pages 282–287 · Markdown

View printed page Page 282 in the PDF Markdown

Appendix A – Character Set, Z80N Mnemonics and Control Codes

This is the complete ZX Spectrum Next / NextZXOS character set, with codes in decimal and hexadecimal, the character each code represents, as well as the control codes (shaded) together with their corresponding NextBASIC tokens, if any. Tokens that are shaded are specific to the ZX Spectrum Next and cannot be found in earlier ZX Spectrum models. As the codes are also Z80N machine code instructions, the right hand columns give the corresponding assembly language mnemonics. As you are probably aware if you understand these things, certain Z80N instructions are compounds starting with CBh or EDh; the two rightmost columns give you these. Note that ED instructions that are shaded, cannot be found in regular Z80 CPUs and are only native to Z80N, the variant of the Z80 CPU, found on the ZX Spectrum Next. Control codes are marked with UW if they refer to User Windows and SW if they refer to System Windows.

Dec	Character / Control Code / Token	Hex	Z80N Assembler	- after CB
0	colour: pale yellow Justify off (UW) Increase font (SW)	00	nop	rlc b
1	colour: pale yellow Justify on (UW) Decrease font (SW)	01	ld bc,NN	rlc c
2	colour: pale yellow Save Window (UW) Change font (SW)	02	ld (bc),a	rlc d
3	colour: pale yellow Restore Window (UW) Regenerate Small Fonts (SW)	03	inc bc	rlc e
4	colour: pale yellow Cursor to top left (UW)(SW)	04	inc b	rlc h
5	colour: pale yellow Cursor to bottom left (UW)(SW)	05	dec b	rlc l
6	colour: pale yellow PRINT comma	06	ld b,N	rlc (hl)
7	colour: pale yellow EDIT, Scroll (SW)(UW)	07	rlca	rlc a
8	colour: pale yellow ⇦	08	ex af,af'	rrc b
9	colour: pale yellow ⇨	09	add hl,bc	rrc c
10	colour: pale yellow ⇩	0A	ld a,(bc)	rrc d
11	colour: pale yellow ⇧	0B	dec bc	rrc e
12	colour: pale yellow DELETE / Backspace	0C	inc c	rrc h
13	colour: pale yellow ENTER / Carriage Return PRINT apostrophe	0D	dec c	rrc l
14	colour: pale yellow Clear Window (UW)(SW)	0E	ld c,N	rrc (hl)
15	colour: pale yellow Wash Window (UW)(SW)	0F	rrca	rrc a
16	colour: pale yellow INK	10	djnz DIS	rl b
17	colour: pale yellow PAPER	11	ld de,NN	rl c
18	colour: pale yellow FLASH	12	ld (de),a	rl d
19	colour: pale yellow BRIGHT	13	inc de	rl e
20	colour: pale yellow INVERSE	14	inc d	rl h
21	colour: pale yellow OVER	15	dec d	rl l
22	colour: pale yellow AT	16	ld d,N	rl (hl)
23	colour: pale yellow TAB	17	rla	rl a
24	colour: pale yellow ATTR (UW)(SW)	18	jr DIS	rr b
25	colour: pale yellow POINT (UW)(SW)	19	add hl,de	rr c
26	colour: pale yellow AUTO PAUSE (UW)(SW)	1A	ld a,(de)	rr d
27	colour: pale yellow Fill window with character(UW)(SW)	1B	dec de	rr e
28	colour: pale yellow Set Double Width (UW)(SW)	1C	inc e	rr h
29	colour: pale yellow Set Font Height (UW)	1D	dec e	rr l
30	colour: pale yellow Justification mode (UW) Set Font Width (SW)	1E	ld e,N	rr (hl)
31	colour: pale yellow Permit embed. codes in justif. mode (UW) Redefine Character Set (SW)	1F	rra	rr a
32	Space	20	jr nz, DIS	sla b
33	!	21	ld hl,NN	sla c

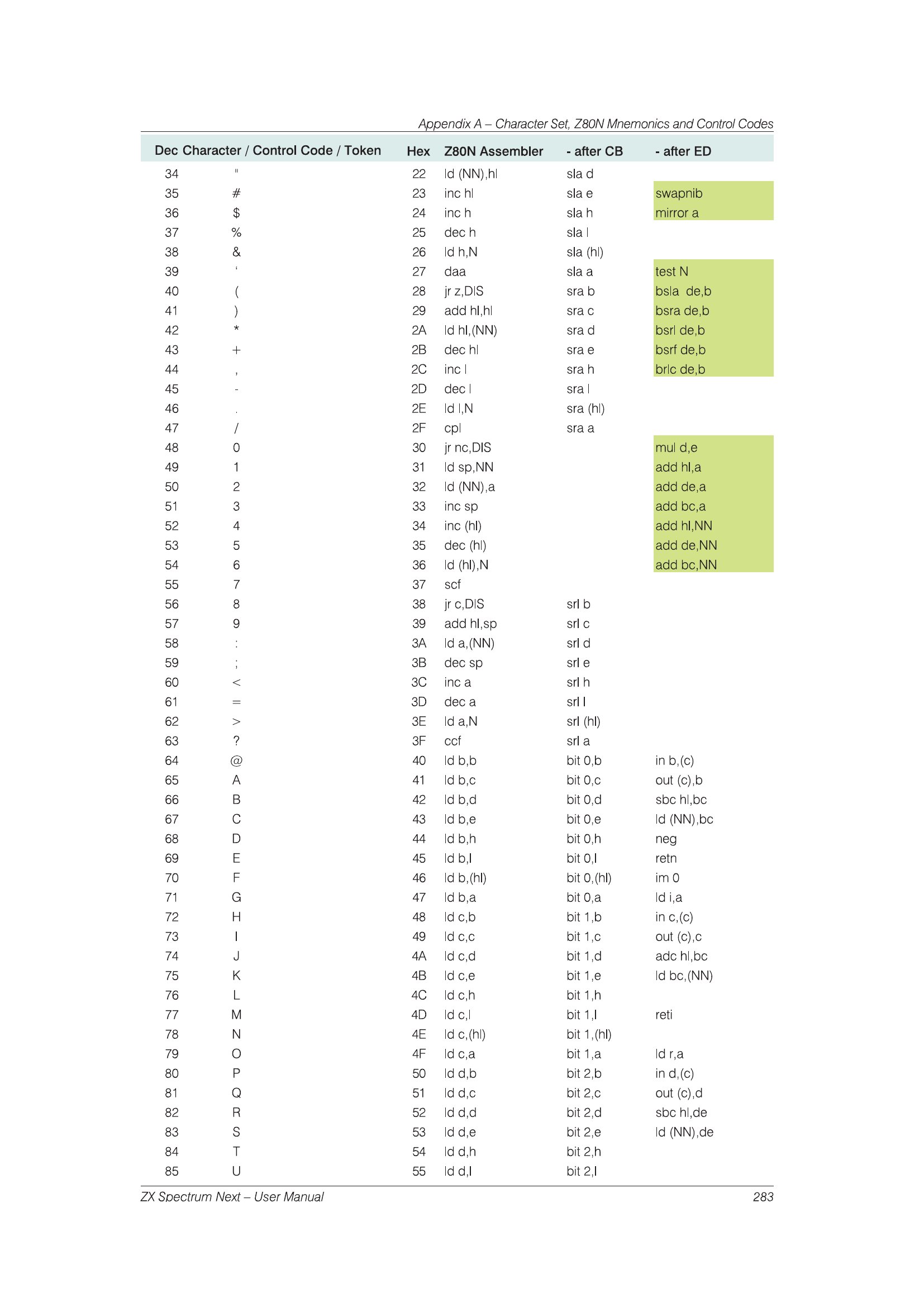

Page 283

View printed page Page 283 in the PDF Markdown

Dec	Character / Control Code / Token	Hex	Z80N Assembler	- after CB	- after ED
34	"	22	ld (NN),hl	sla d
35	#	23	inc hl	sla e	colour: yellow-green swapnib
36	$	24	inc h	sla h	colour: yellow-green mirror a
37	%	25	dec h	sla l
38	&	26	ld h,N	sla (hl)
39	‘	27	daa	sla a	colour: yellow-green test N
40	(	28	jr z,DIS	sra b	colour: yellow-green bsla de,b
41	)	29	add hl,hl	sra c	colour: yellow-green bsra de,b
42	*	2A	ld hl,(NN)	sra d	colour: yellow-green bsrl de,b
43	+	2B	dec hl	sra e	colour: yellow-green bsrf de,b
44	,	2C	inc l	sra h	colour: yellow-green brlc de,b
45	-	2D	dec l	sra l
46	.	2E	ld l,N	sra (hl)
47	/	2F	cpl	sra a
48	0	30	jr nc,DIS		colour: yellow-green mul d,e
49	1	31	ld sp,NN		colour: yellow-green add hl,a
50	2	32	ld (NN),a		colour: yellow-green add de,a
51	3	33	inc sp		colour: yellow-green add bc,a
52	4	34	inc (hl)		colour: yellow-green add hl,NN
53	5	35	dec (hl)		colour: yellow-green add de,NN
54	6	36	ld (hl),N		colour: yellow-green add bc,NN
55	7	37	scf
56	8	38	jr c,DIS	srl b
57	9	39	add hl,sp	srl c
58	:	3A	ld a,(NN)	srl d
59	;	3B	dec sp	srl e
60	<	3C	inc a	srl h
61	=	3D	dec a	srl l
62	>	3E	ld a,N	srl (hl)
63	?	3F	ccf	srl a
64	@	40	ld b,b	bit 0,b	in b,(c)
65	A	41	ld b,c	bit 0,c	out (c),b
66	B	42	ld b,d	bit 0,d	sbc hl,bc
67	C	43	ld b,e	bit 0,e	ld (NN),bc
68	D	44	ld b,h	bit 0,h	neg
69	E	45	ld b,l	bit 0,l	retn
70	F	46	ld b,(hl)	bit 0,(hl)	im 0
71	G	47	ld b,a	bit 0,a	ld i,a
72	H	48	ld c,b	bit 1,b	in c,(c)
73	I	49	ld c,c	bit 1,c	out (c),c
74	J	4A	ld c,d	bit 1,d	adc hl,bc
75	K	4B	ld c,e	bit 1,e	ld bc,(NN)
76	L	4C	ld c,h	bit 1,h
77	M	4D	ld c,l	bit 1,l	reti
78	N	4E	ld c,(hl)	bit 1,(hl)
79	O	4F	ld c,a	bit 1,a	ld r,a
80	P	50	ld d,b	bit 2,b	in d,(c)
81	Q	51	ld d,c	bit 2,c	out (c),d
82	R	52	ld d,d	bit 2,d	sbc hl,de
83	S	53	ld d,e	bit 2,e	ld (NN),de
84	T	54	ld d,h	bit 2,h
85	U	55	ld d,l	bit 2,l

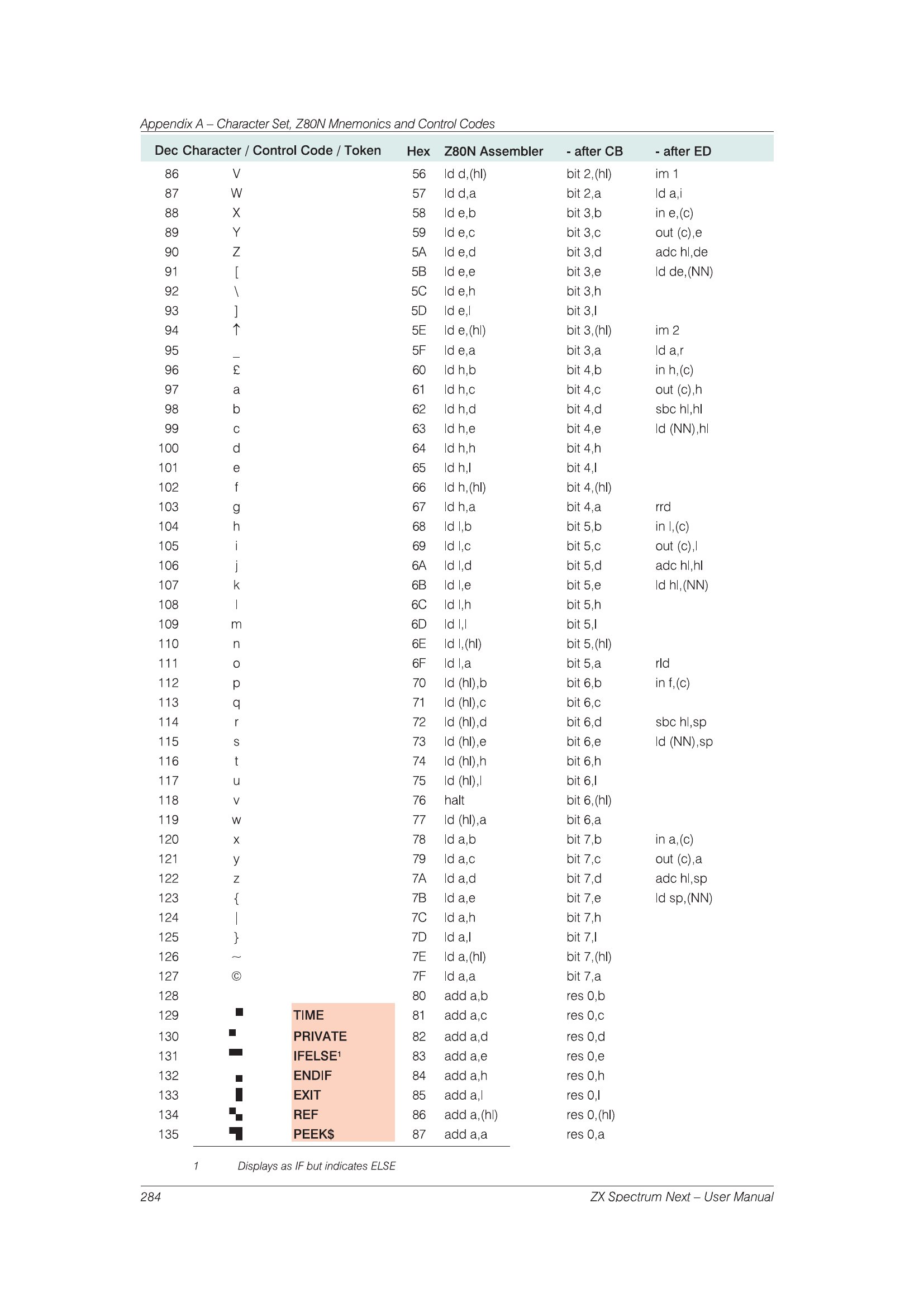

Page 284

View printed page Page 284 in the PDF Markdown

Dec	Character / Control Code / Token		Hex	Z80N Assembler	- after CB	- after ED
86	V		56	ld d,(hl)	bit 2,(hl)	im 1
87	W		57	ld d,a	bit 2,a	ld a,i
88	X		58	ld e,b	bit 3,b	in e,(c)
89	Y		59	ld e,c	bit 3,c	out (c),e
90	Z		5A	ld e,d	bit 3,d	adc hl,de
91	[		5B	ld e,e	bit 3,e	ld de,(NN)
92	\		5C	ld e,h	bit 3,h
93	]		5D	ld e,l	bit 3,l
94	↑		5E	ld e,(hl)	bit 3,(hl)	im 2
95	_		5F	ld e,a	bit 3,a	ld a,r
96	£		60	ld h,b	bit 4,b	in h,(c)
97	a		61	ld h,c	bit 4,c	out (c),h
98	b		62	ld h,d	bit 4,d	sbc hl,hl
99	c		63	ld h,e	bit 4,e	ld (NN),hl
100	d		64	ld h,h	bit 4,h
101	e		65	ld h,l	bit 4,l
102	f		66	ld h,(hl)	bit 4,(hl)
103	g		67	ld h,a	bit 4,a	rrd
104	h		68	ld l,b	bit 5,b	in l,(c)
105	i		69	ld l,c	bit 5,c	out (c),l
106	j		6A	ld l,d	bit 5,d	adc hl,hl
107	k		6B	ld l,e	bit 5,e	ld hl,(NN)
108	l		6C	ld l,h	bit 5,h
109	m		6D	ld l,l	bit 5,l
110	n		6E	ld l,(hl)	bit 5,(hl)
111	o		6F	ld l,a	bit 5,a	rld
112	p		70	ld (hl),b	bit 6,b	in f,(c)
113	q		71	ld (hl),c	bit 6,c
114	r		72	ld (hl),d	bit 6,d	sbc hl,sp
115	s		73	ld (hl),e	bit 6,e	ld (NN),sp
116	t		74	ld (hl),h	bit 6,h
117	u		75	ld (hl),l	bit 6,l
118	v		76	halt	bit 6,(hl)
119	w		77	ld (hl),a	bit 6,a
120	x		78	ld a,b	bit 7,b	in a,(c)
121	y		79	ld a,c	bit 7,c	out (c),a
122	z		7A	ld a,d	bit 7,d	adc hl,sp
123	{		7B	ld a,e	bit 7,e	ld sp,(NN)
124	\|		7C	ld a,h	bit 7,h
125	}		7D	ld a,l	bit 7,l
126	~		7E	ld a,(hl)	bit 7,(hl)
127	©		7F	ld a,a	bit 7,a
128			80	add a,b	res 0,b
129	▝	colour: pink TIME	81	add a,c	res 0,c
130	▘	colour: pink PRIVATE	82	add a,d	res 0,d
131	▀	colour: pink IFELSE¹	83	add a,e	res 0,e
132	▗	colour: pink ENDIF	84	add a,h	res 0,h
133	▐	colour: pink EXIT	85	add a,l	res 0,l
134	▚	colour: pink REF	86	add a,(hl)	res 0,(hl)
135	▜	colour: pink PEEK$	87	add a,a	res 0,a

¹ Displays as IF but indicates ELSE

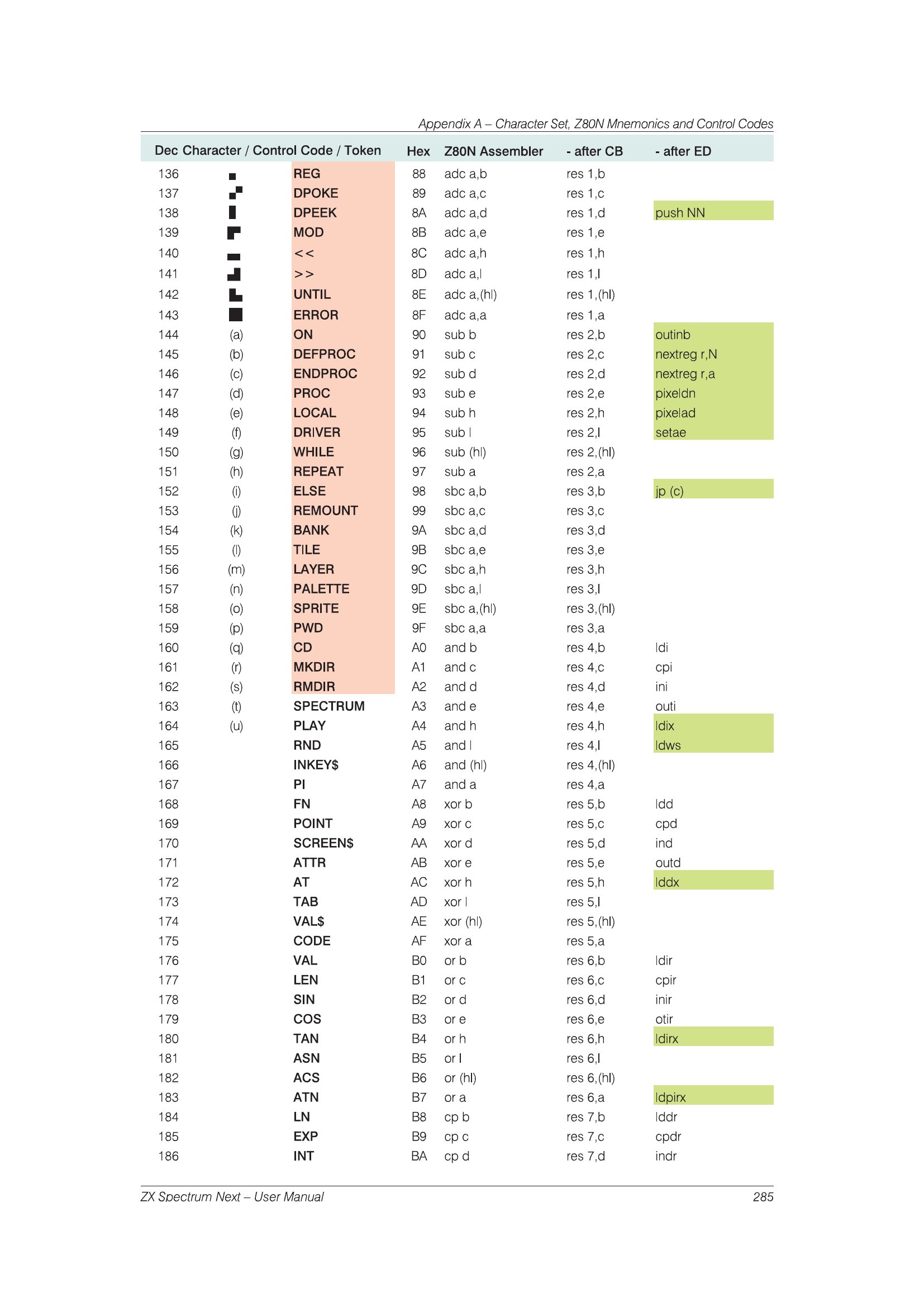

Page 285

View printed page Page 285 in the PDF Markdown

Dec	Character / Control Code / Token		Hex	Z80N Assembler	- after CB	- after ED
136	▖	colour: pink REG	88	adc a,b	res 1,b
137	▞	colour: pink DPOKE	89	adc a,c	res 1,c
138	▌	colour: pink DPEEK	8A	adc a,d	res 1,d	colour: yellow-green push NN
139	▛	colour: pink MOD	8B	adc a,e	res 1,e
140	▄	colour: pink <<	8C	adc a,h	res 1,h
141	▟	colour: pink >>	8D	adc a,l	res 1,l
142	▙	colour: pink UNTIL	8E	adc a,(hl)	res 1,(hl)
143	█	colour: pink ERROR	8F	adc a,a	res 1,a
144	(a)	colour: pink ON	90	sub b	res 2,b	colour: yellow-green outinb
145	(b)	colour: pink DEFPROC	91	sub c	res 2,c	colour: yellow-green nextreg r,N
146	(c)	colour: pink ENDPROC	92	sub d	res 2,d	colour: yellow-green nextreg r,a
147	(d)	colour: pink PROC	93	sub e	res 2,e	colour: yellow-green pixeldn
148	(e)	colour: pink LOCAL	94	sub h	res 2,h	colour: yellow-green pixelad
149	(f)	colour: pink DRIVER	95	sub l	res 2,l	colour: yellow-green setae
150	(g)	colour: pink WHILE	96	sub (hl)	res 2,(hl)
151	(h)	colour: pink REPEAT	97	sub a	res 2,a
152	(i)	colour: pink ELSE	98	sbc a,b	res 3,b	colour: yellow-green jp (c)
153	(j)	colour: pink REMOUNT	99	sbc a,c	res 3,c
154	(k)	colour: pink BANK	9A	sbc a,d	res 3,d
155	(l)	colour: pink TILE	9B	sbc a,e	res 3,e
156	(m)	colour: pink LAYER	9C	sbc a,h	res 3,h
157	(n)	colour: pink PALETTE	9D	sbc a,l	res 3,l
158	(o)	colour: pink SPRITE	9E	sbc a,(hl)	res 3,(hl)
159	(p)	colour: pink PWD	9F	sbc a,a	res 3,a
160	(q)	colour: pink CD	A0	and b	res 4,b	ldi
161	(r)	colour: pink MKDIR	A1	and c	res 4,c	cpi
162	(s)	colour: pink RMDIR	A2	and d	res 4,d	ini
163	(t)	SPECTRUM	A3	and e	res 4,e	outi
164	(u)	PLAY	A4	and h	res 4,h	colour: yellow-green ldix
165		RND	A5	and l	res 4,l	colour: yellow-green ldws
166		INKEY$	A6	and (hl)	res 4,(hl)
167		PI	A7	and a	res 4,a
168		FN	A8	xor b	res 5,b	ldd
169		POINT	A9	xor c	res 5,c	cpd
170		SCREEN$	AA	xor d	res 5,d	ind
171		ATTR	AB	xor e	res 5,e	outd
172		AT	AC	xor h	res 5,h	colour: yellow-green lddx
173		TAB	AD	xor l	res 5,l
174		VAL$	AE	xor (hl)	res 5,(hl)
175		CODE	AF	xor a	res 5,a
176		VAL	B0	or b	res 6,b	ldir
177		LEN	B1	or c	res 6,c	cpir
178		SIN	B2	or d	res 6,d	inir
179		COS	B3	or e	res 6,e	otir
180		TAN	B4	or h	res 6,h	colour: yellow-green ldirx
181		ASN	B5	or l	res 6,l
182		ACS	B6	or (hl)	res 6,(hl)
183		ATN	B7	or a	res 6,a	colour: yellow-green ldpirx
184		LN	B8	cp b	res 7,b	lddr
185		EXP	B9	cp c	res 7,c	cpdr
186		INT	BA	cp d	res 7,d	indr

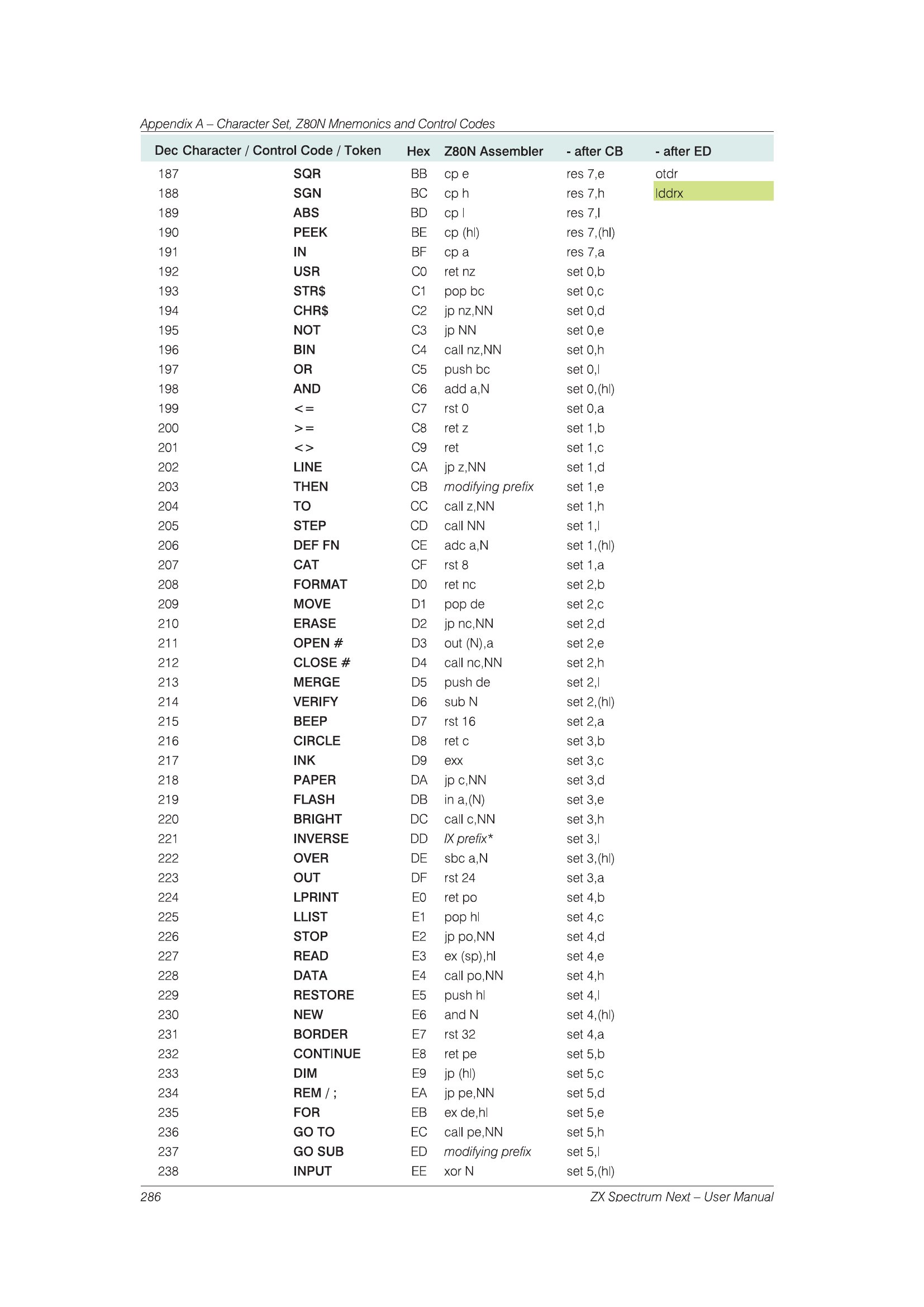

Page 286

View printed page Page 286 in the PDF Markdown

Dec		Hex	Z80N Assembler	- after CB	- after ED
187	SQR	BB	cp e	res 7,e	otdr
188	SGN	BC	cp h	res 7,h	colour: yellow-green lddrx
189	ABS	BD	cp l	res 7,l
190	PEEK	BE	cp (hl)	res 7,(hl)
191	IN	BF	cp a	res 7,a
192	USR	C0	ret nz	set 0,b
193	STR$	C1	pop bc	set 0,c
194	CHR$	C2	jp nz,NN	set 0,d
195	NOT	C3	jp NN	set 0,e
196	BIN	C4	call nz,NN	set 0,h
197	OR	C5	push bc	set 0,l
198	AND	C6	add a,N	set 0,(hl)
199	<=	C7	rst 0	set 0,a
200	>=	C8	ret z	set 1,b
201	<>	C9	ret	set 1,c
202	LINE	CA	jp z,NN	set 1,d
203	THEN	CB	modifying prefix	set 1,e
204	TO	CC	call z,NN	set 1,h
205	STEP	CD	call NN	set 1,l
206	DEF FN	CE	adc a,N	set 1,(hl)
207	CAT	CF	rst 8	set 1,a
208	FORMAT	D0	ret nc	set 2,b
209	MOVE	D1	pop de	set 2,c
210	ERASE	D2	jp nc,NN	set 2,d
211	OPEN #	D3	out (N),a	set 2,e
212	CLOSE #	D4	call nc,NN	set 2,h
213	MERGE	D5	push de	set 2,l
214	VERIFY	D6	sub N	set 2,(hl)
215	BEEP	D7	rst 16	set 2,a
216	CIRCLE	D8	ret c	set 3,b
217	INK	D9	exx	set 3,c
218	PAPER	DA	jp c,NN	set 3,d
219	FLASH	DB	in a,(N)	set 3,e
220	BRIGHT	DC	call c,NN	set 3,h
221	INVERSE	DD	IX prefix*	set 3,l
222	OVER	DE	sbc a,N	set 3,(hl)
223	OUT	DF	rst 24	set 3,a
224	LPRINT	E0	ret po	set 4,b
225	LLIST	E1	pop hl	set 4,c
226	STOP	E2	jp po,NN	set 4,d
227	READ	E3	ex (sp),hl	set 4,e
228	DATA	E4	call po,NN	set 4,h
229	RESTORE	E5	push hl	set 4,l
230	NEW	E6	and N	set 4,(hl)
231	BORDER	E7	rst 32	set 4,a
232	CONTINUE	E8	ret pe	set 5,b
233	DIM	E9	jp (hl)	set 5,c
234	REM / ;	EA	jp pe,NN	set 5,d
235	FOR	EB	ex de,hl	set 5,e
236	GO TO	EC	call pe,NN	set 5,h
237	GO SUB	ED	modifying prefix	set 5,l
238	INPUT	EE	xor N	set 5,(hl)

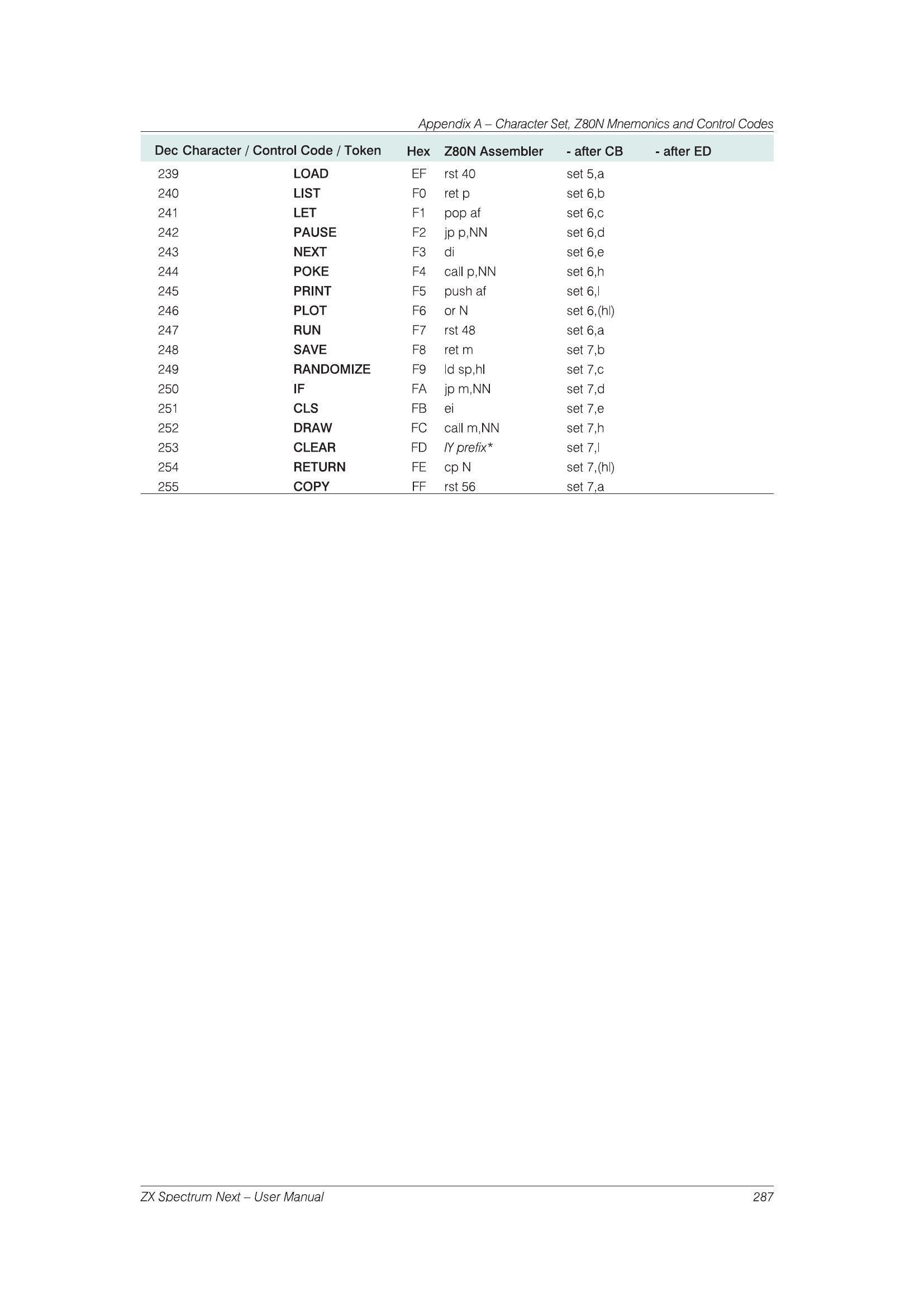

Page 287

View printed page Page 287 in the PDF Markdown

Dec		Hex	Z80N Assembler	- after CB
239	LOAD	EF	rst 40	set 5,a
240	LIST	F0	ret p	set 6,b
241	LET	F1	pop af	set 6,c
242	PAUSE	F2	jp p,NN	set 6,d
243	NEXT	F3	di	set 6,e
244	POKE	F4	call p,NN	set 6,h
245	PRINT	F5	push af	set 6,l
246	PLOT	F6	or N	set 6,(hl)
247	RUN	F7	rst 48	set 6,a
248	SAVE	F8	ret m	set 7,b
249	RANDOMIZE	F9	ld sp,hl	set 7,c
250	IF	FA	jp m,NN	set 7,d
251	CLS	FB	ei	set 7,e
252	DRAW	FC	call m,NN	set 7,h
253	CLEAR	FD	IY prefix*	set 7,l
254	RETURN	FE	cp N	set 7,(hl)
255	COPY	FF	rst 56	set 7,a
